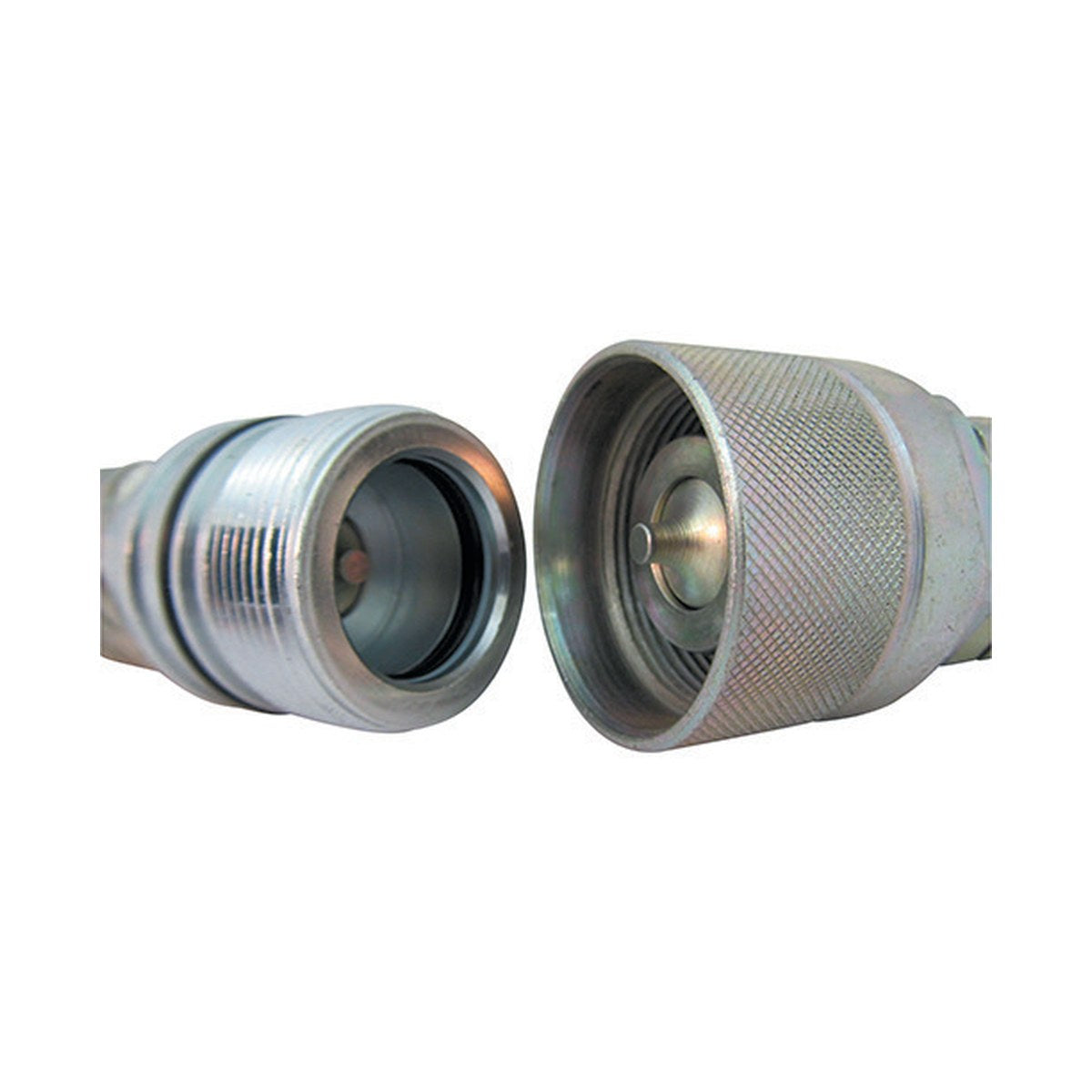

SCREW TYPE COUPLER | ISO14541 VD POPPET - PRODUCT IMAGE
SCREW TYPE COUPLER | ISO14541 VD POPPET - TECHNICAL DETAILS
SCREW TYPE COUPLER | ISO14541 VD POPPET - PRODUCT IMAGE
SCREW TYPE COUPLER | ISO14541 VD POPPET - TECHNICAL DETAILS

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Mono Hydraulics

SCREW TYPE COUPLER | ISO14541 VD POPPET

SKU: PVV3-0606112
(0)
$43.30 inc. VAT
In stock
Usually ships within 24 hours
Size
Ready to work out of the box!

All tools are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

Screw Type Coupler | ISO14541 Vd Poppet

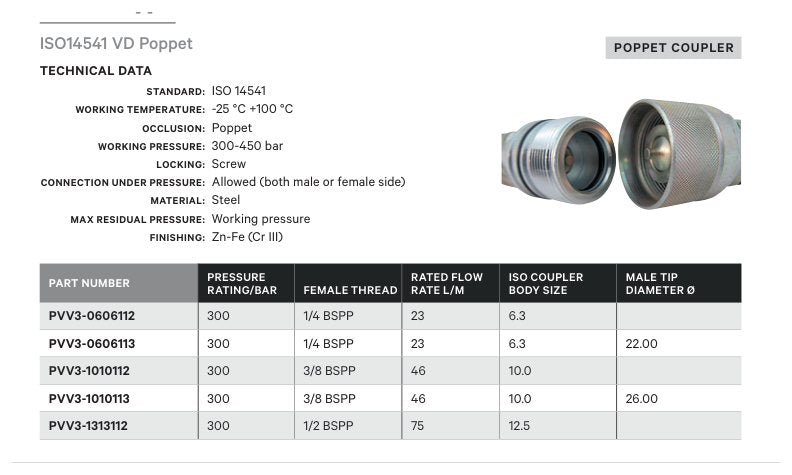

For product size specifications, please view the product information image.

TECHNICAL DATA

STANDARD: ISO 14541
WORKING TEMPERATURE: -25 °C +100 °C
OCCLUSION: Poppet
WORKING PRESSURE: 300-450 bar
LOCKING: Screw
CONNECTION UNDER PRESSURE: Allowed (both male or female side)
MATERIAL: Steel
MAX RESIDUAL PRESSURE: Working pressure
FINISHING: Zn-Fe (Cr III)

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

There is €4.99 charge for delivery under €50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.

Buy in bulk

Variant Quantity Price Total
FEMALE COUPLER | THREAD 1/4" BSPP | BODY 6.3 MM PVV3-0606112
$43.30 inc. VAT
$0.00
$43.30 inc. VAT
$0.00
MALE TIP | THREAD 1/4" BSPP | BODY 6.3 MM PVV3-0606113
$108.56 inc. VAT
$0.00
$108.56 inc. VAT
$0.00
FEMALE COUPLER | THREAD 3/8" BSPP | BODY 10 MM PVV3-1010112
$44.08 inc. VAT
$0.00
$44.08 inc. VAT
$0.00
MALE TIP | THREAD 3/8" BSPP | BODY 10 MM PVV3-1010113
$50.94 inc. VAT
$0.00
$50.94 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1/2" BSPP | BODY 12.5 MM PVV3-1313112
$50.94 inc. VAT
$0.00
$50.94 inc. VAT
$0.00
MALE TIP | THREAD 1/2" BSPP | BODY 12.5 MM PVV3-1313113
$52.23 inc. VAT
$0.00
$52.23 inc. VAT
$0.00
FEMALE COUPLER | THREAD 3/4" BSPP | BODY 19 MM PVV3-2019112
$103.16 inc. VAT
$0.00
$103.16 inc. VAT
$0.00
MALE TIP | THREAD 3/4" BSPP | BODY 19 MM PVV3-2019113
$108.27 inc. VAT
$0.00
$108.27 inc. VAT
$0.00
FEMALE COUPLER | THREAD 3/4" BSPP | BODY 25 MM PVV3-2519112
$114.63 inc. VAT
$0.00
$114.63 inc. VAT
$0.00
MALE TIP | THREAD 3/4" BSPP | BODY 25 MM PVV3-2519113
$121.00 inc. VAT
$0.00
$121.00 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1" BSPP | BODY 25 MM PVV3-2525112
$463.25 inc. VAT
$0.00
$463.25 inc. VAT
$0.00
MALE TIP | THREAD 1" BSPP | BODY 25 MM PVV3-2525113
$474.67 inc. VAT
$0.00
$474.67 inc. VAT
$0.00
