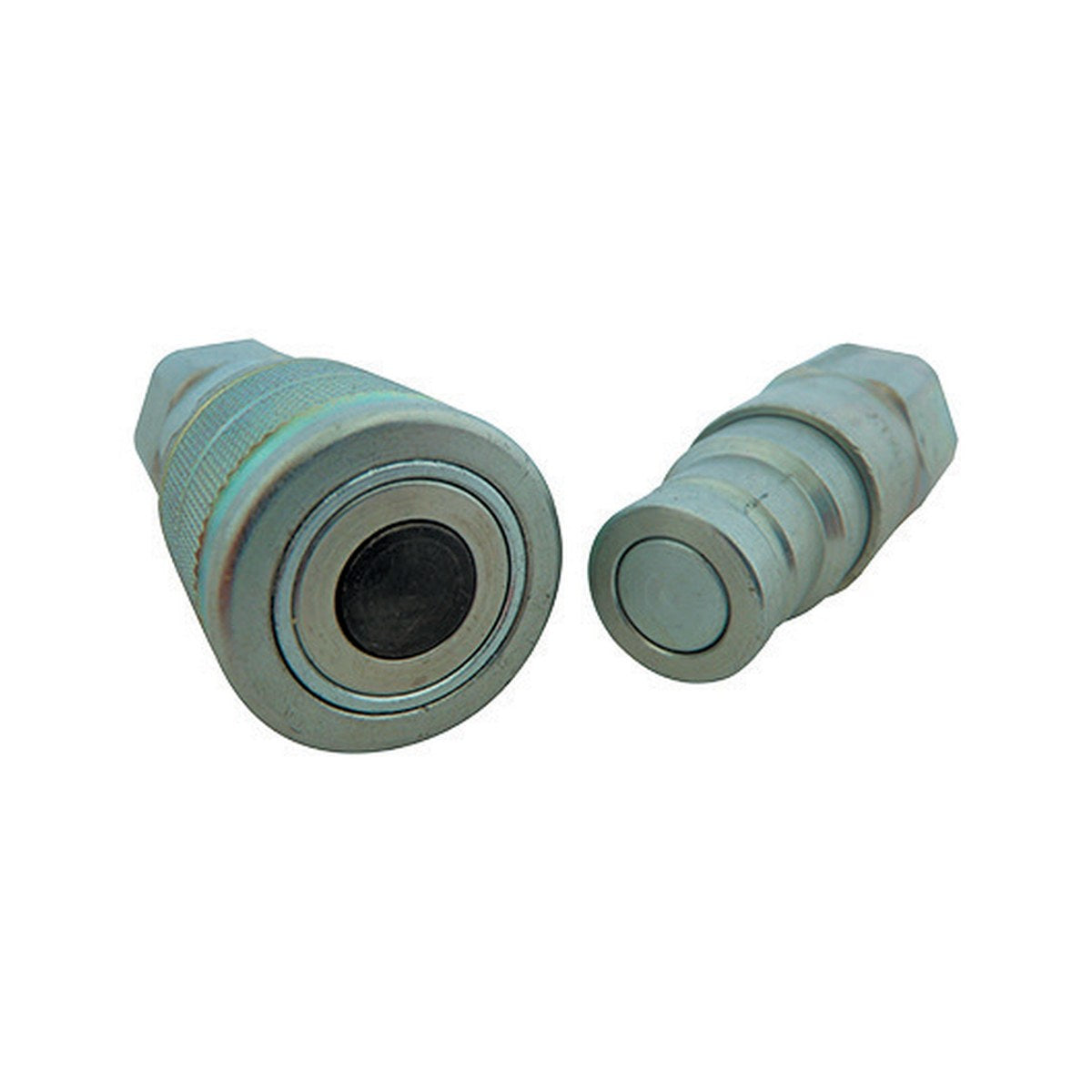

Flat Face Coupler | ISO16028 A-SERIES High-pressure

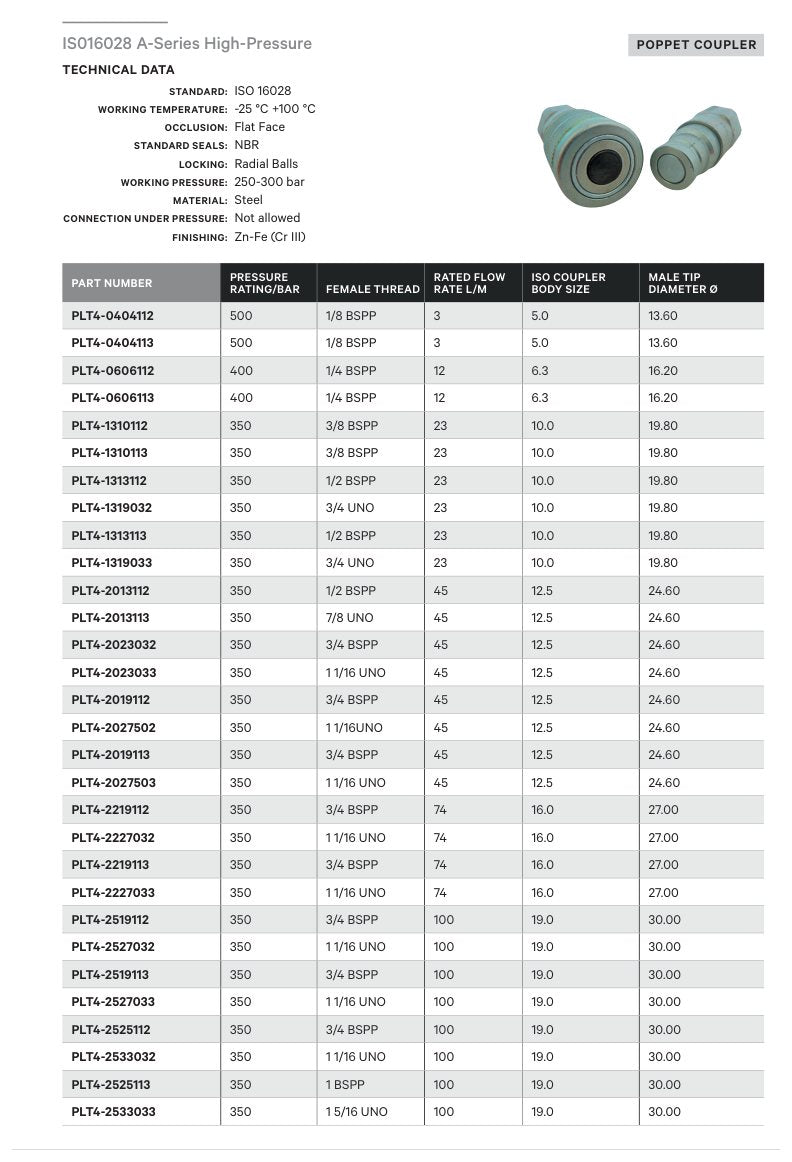

For product size specifications, please view the product information image.

TECHNICAL DATA

STANDARD: ISO 16028
WORKING TEMPERATURE: -25 °C +100 °C
OCCLUSION: Flat Face
STANDARD SEALS: NBR
LOCKING: Radial Balls
WORKING PRESSURE: 250-300 bar
MATERIAL: Steel
CONNECTION UNDER PRESSURE: Not allowed
FINISHING: Zn-Fe (Cr III)

Order by 2PM to get delivered next working day! We use 24 hours service with carriers in most cases so that you can get your order delivered on time.

There is €4.99 charge for delivery under €50 Orders. Additional charges will be imposed by our couriers for delivery to remote area, a surcharge may be levied to cover carriage to these areas.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.

Buy in bulk

Variant Quantity Price Total
FEMALE COUPLER | THREAD 1/8" BSPP | BODY 5 MM PLT4-0404112
$106.99 inc. VAT
$0.00
$106.99 inc. VAT
$0.00
MALE TIP | THREAD 1/8" BSPP | BODY 5 MM PLT4-0404113
$50.94 inc. VAT
$0.00
$50.94 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1/4" BSPP | BODY 6.3 MM PLT4-0606112
$89.17 inc. VAT
$0.00
$89.17 inc. VAT
$0.00
MALE TIP | THREAD 1/4" BSPP | BODY 6.3 MM PLT4-0606113
$40.76 inc. VAT
$0.00
$40.76 inc. VAT
$0.00
FEMALE COUPLER | THREAD 3/8" BSPP | BODY 10 MM PLT4-1310112
$105.71 inc. VAT
$0.00
$105.71 inc. VAT
$0.00
MALE TIP | THREAD 3/8" BSPP | BODY 10 MM PLT4-1310113
$45.88 inc. VAT
$0.00
$45.88 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1/2" BSPP | BODY 10 MM PLT4-1313112
$105.71 inc. VAT
$0.00
$105.71 inc. VAT
$0.00
MALE TIP | THREAD 1/2" BSPP | BODY 10 MM PLT4-1313113
$51.55 inc. VAT
$0.00
$51.55 inc. VAT
$0.00
FEMALE COUPLER | THREAD 3/4" UNO | BODY 10 MM PLT4-1319032
$114.63 inc. VAT
$0.00
$114.63 inc. VAT
$0.00
MALE TIP | THREAD 3/4" UNO | BODY 10 MM PLT4-1319033
$54.22 inc. VAT
$0.00
$54.22 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1/2" BSPP | BODY 12.5 MM PLT4-2013112
$135.69 inc. VAT
$0.00
$135.69 inc. VAT
$0.00
MALE TIP | THREAD 1/2" BSPP | BODY 12.5 MM PLT4-2013113
$67.29 inc. VAT
$0.00
$67.29 inc. VAT
$0.00
FEMALE COUPLER | THREAD 7/8" UNO | BODY 12.5 MM PLT4-2023032
$132.46 inc. VAT
$0.00
$132.46 inc. VAT
$0.00
MALE TIP | THREAD 7/8" UNO | BODY 12.5 MM PLT4-2023033
$92.97 inc. VAT
$0.00
$92.97 inc. VAT
$0.00
FEMALE COUPLER | THREAD 3/4" BSPP | BODY 12.5 MM PLT4-2019112
$227.18 inc. VAT
$0.00
$227.18 inc. VAT
$0.00
MALE TIP | THREAD 3/4" BSPP | BODY 12.5 MM PLT4-2019113
$92.11 inc. VAT
$0.00
$92.11 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1 1/16" UNO | BODY 12.5 MM PLT4-2027502
$312.25 inc. VAT
$0.00
$312.25 inc. VAT
$0.00
MALE TIP | THREAD 1 1/16" UNO | BODY 12.5 MM PLT4-2027503
$92.97 inc. VAT
$0.00
$92.97 inc. VAT
$0.00
FEMALE COUPLER | THREAD 3/4" BSPP | BODY 16 MM PLT4-2219112
$196.32 inc. VAT
$0.00
$196.32 inc. VAT
$0.00
MALE TIP | THREAD 3/4" BSPP | BODY 16 MM PLT4-2219113
$121.00 inc. VAT
$0.00
$121.00 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1 1/16" UNO | BODY 16 MM PLT4-2227032
$233.86 inc. VAT
$0.00
$233.86 inc. VAT
$0.00
MALE TIP | THREAD 1 1/16" UNO | BODY 16 MM PLT4-2227033
$129.91 inc. VAT
$0.00
$129.91 inc. VAT
$0.00
FEMALE COUPLER | THREAD 3/4" BSPP | BODY 19 MM PLT4-2519112
$337.52 inc. VAT
$0.00
$337.52 inc. VAT
$0.00
MALE TIP | THREAD 3/4" BSPP | BODY 19 MM PLT4-2519113
$191.05 inc. VAT
$0.00
$191.05 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1 1/16" UNO | BODY 19 MM PLT4-2527032
$337.55 inc. VAT
$0.00
$337.55 inc. VAT
$0.00
MALE TIP | THREAD 1 1/16" UNO | BODY 19 MM PLT4-2527033
$178.31 inc. VAT
$0.00
$178.31 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1" BSPP | BODY 19 MM PLT4-2525112
$331.14 inc. VAT
$0.00
$331.14 inc. VAT
$0.00
MALE TIP | THREAD 1" BSPP | BODY 19 MM PLT4-2525113
$183.86 inc. VAT
$0.00
$183.86 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1 5/16" UNO | BODY 19 MM PLT4-2533032
$517.28 inc. VAT
$0.00
$517.28 inc. VAT
$0.00
MALE TIP | THREAD 1 5/16" UNO | BODY 19 MM PLT4-2533033
$440.64 inc. VAT
$0.00
$440.64 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1" BSPP | BODY 25 MM PLT4-3025112
$458.52 inc. VAT
$0.00
$458.52 inc. VAT
$0.00
MALE TIP | THREAD 1" BSPP | BODY 25 MM PLT4-3025113
$241.99 inc. VAT
$0.00
$241.99 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1 1/4" BSPP | BODY 25 MM PLT4-3031112
$458.52 inc. VAT
$0.00
$458.52 inc. VAT
$0.00
MALE TIP | THREAD 1 1/4" BSPP | BODY 25 MM PLT4-3031113
$241.99 inc. VAT
$0.00
$241.99 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1 1/4" BSPP | BODY 31.5 MM PLT4-3531002
$955.25 inc. VAT
$0.00
$955.25 inc. VAT
$0.00
MALE TIP | THREAD 1 1/4" BSPP | BODY 31.5 MM PLT4-3531003
$445.77 inc. VAT
$0.00
$445.77 inc. VAT
$0.00
FEMALE COUPLER | THREAD 1 1/2" BSPP | BODY 40 MM PLT4-3939002
$967.97 inc. VAT
$0.00
$967.97 inc. VAT
$0.00
MALE TIP | THREAD 1 1/2" BSPP | BODY 40 MM PLT4-3939003
$519.14 inc. VAT
$0.00
$519.14 inc. VAT
$0.00
